Camera | |
---|
Image sensor | 1/2.8’’ Progressive scan CMOS |
|
Effective pixels | |
Minimum scene illumination | 0.04 lux color, 0.002 lux (b/w); |
|
Shutter speed | |
Lens mount | |
Iris control | |
(back-)Focus control | |
Functions | |
---|
Privacy masks | |
Text and picture overlay | Date, time, date & time, subtitle, image |
|
Video motion detection | |
Video motion detection alarm | Alarm output, record video clip, send alarm message, upload image |
|
Network failure detection | |
Network failure detection alarm | Alarm output, record video clip, send alarm message, upload image |
|
Tamper detection | |
Tamper detection alarm | Alarm output, record video clip, send alarm message, upload image |
|
Behavior Analytics | Intrusion, Loitering Detection, Object Abandoned, Object Removal, Camera Sabotage, |
|
| Wrong Direction, Object Counting |
|
Image control | |
---|
Wide dynamic range | |
- gamma WDR | |
- dual shutter WDR (HDR) | 120 dB (default on – limits frame rate to 30 fps) |
|
Exposure | |
White balance | Auto / ATW / Manual / One push |
|
Image settings | Contrast Brightness Saturation Hue Sharpness |
|
Day/Night function | |
| Configurable day/night threshold levels/ IR light compensation |
|
Noise reduction | |
Low, medium, high (w/ Motion Compensation) | |
---|
Backlight compensation | |
Digital zoom | |
Image rotation | 0°, 90⁰, 180⁰, 270⁰ rotation |
|
Video | |
---|
Compression algorithm(s) | H.265, H.264 (main / high profile); MJPEG |
|
Number of compression instances | Any combination of H.265 or H.264 streams with possibly one MJPEG stream. |
|
Supported resolutions | 2065x1553 (3MP); 1080p30,1280x1024; 720p30; 1024x768; 800x600; |
|
| 720x576 (D1); 640x480 (VGA); 352x288 (CIF) |
|
Max streaming (H264/H265/MJPEG) 60fps | |
- 30fps | |
- 30fps | 1920x1080 | 1920x1080 | 800x600 | 352x240 |
|
- 30fps | 1920x1080 | 1280x720 | 1280x720 | 1024x768 |
|
Compression bit rate control | Constant bit rate (CBR), variable bit rate (VBR), |
|
| |
Number of video output streams | |
Total output data rate (max) | |
Video frame rate (max) | 1 to 60 fps / 1 to 50 fps |
|
Storage | |
---|
Storage options | Micro SD/SDHC/SDXC card (512 GB max); NAS |
|
Network | |
---|
Interface(s) | |
Network protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, |
|
| |
Management | |
---|
Supported browsers | Internet Explorer 10+ (Chrome, Firefox, Edge: no OCX support) |
|
Security | HTTPS, IP Filter, IEEE 802.1x |
|
Protocols | UPnP, SNMP, ONVIF Profile S, G and Q |
|
Password levels | |
User accounts | |
Ordering information | |
---|

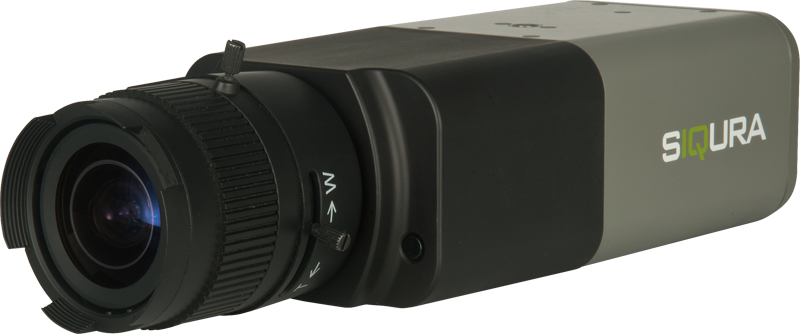

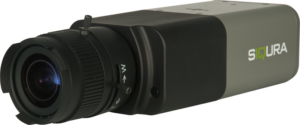

BC920-AS | Assembly IP box camera, 3MP, Day/night, H.265/H.264/MJPEG P-iris |
|
RL0560P | CS-mount lens, P-iris, 2MP, 5.0 -60 mm, f/1.6 |
|
RL1250P | CS-mount lens, P-iris, 3MP, 12 -50 mm, f/1.5 |
|
