INT3-RJ / INT3-SM / INT3-MM / INT3-EoC

Network Interface and cable tail of the Siqura SA3 or EX3 cameras

Product Sheet

INT3-RJ / INT3-SM / INT3-MM / INT3-EoC

The INT3-RJ, INT3-SM, INT3-MM, and INT3-EoC specifications outline the interface and cable tail for the Siqura SA3 or EX3 camera. It is essential to define this option in conjunction with the housing and the assembled camera. For INMETRO compliance, simply add '-IN' to the product name.

Features

  • INT3-RJ(-IN/-SA): CAT 5e interface on RJ45
  • INT3-SM(-IN/-SA): Single-mode fiber interface
  • INT3-MM(-IN): Multi-mode fiber interface
  • INT3-EoC: Ethernet over Coax interface
  • ATEX certified armoured multicable
  • ATEX certified Ex d barrier glands
  • INMETRO certified (-IN versions only)

Description

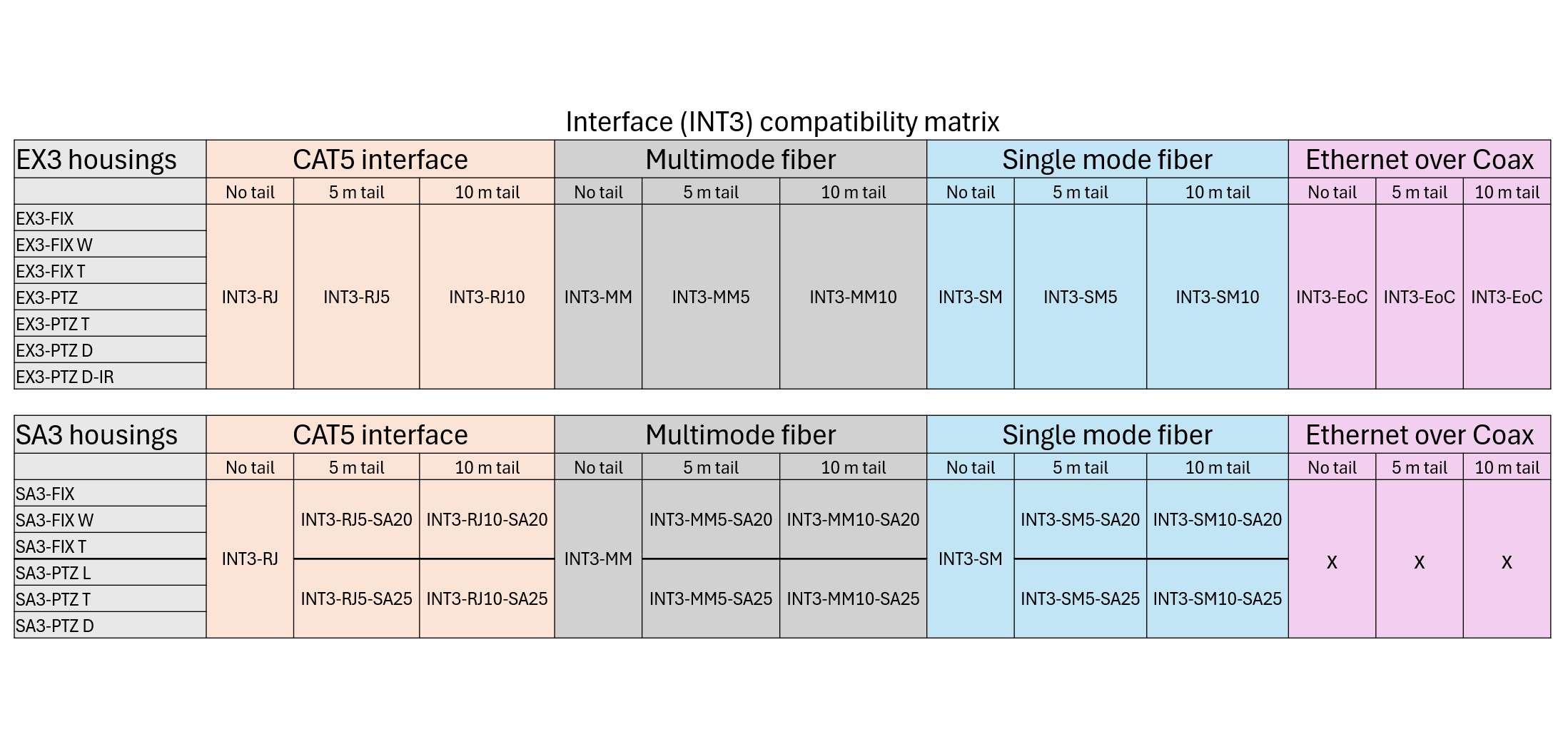

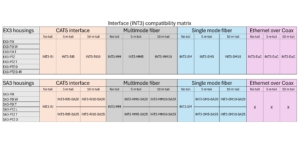

INT3 for EX3 Housings
The EX3 housings can be outfitted with direct fiber outputs using the INT3-SM interface for Ethernet over single-mode fiber and the INT3-MM for multimode fiber connections. For Fast Ethernet connections, such as those using CAT5e cables, the INT3-RJ interface is necessary.
In environments with explosion hazards, a specialized cable tail is required. The INT3-RJ5 and INT3-RJ10 models specify an EX cable tail, available in lengths of 5 or 10 meters. Conversely, the INT3-SM5 and INT3-SM10 models are designed for single-mode cables and the INT3-MM models for multimode cables. Each cable tail is equipped with two Ex d barrier glands at both ends to ensure secure termination.

INT3 for SA3 Housings
The SA3 housings can be equipped with direct fiber outputs by utilizing the INT3-SM interface for Ethernet over single-mode and the INT3-MM for multimode fiber. For fast Ethernet connections (e.g. CAT5e), the INT3-RJ interface is required. Additionally, specialized composite SA3 cable tails are available for Fast Ethernet or single-mode or multimode fiber, with lengths of 5 or 10 meters. The -SA20 model, featuring M20 cable glands, is compatible with the SA3-FIX housings, while the -SA25 version is designed for the SA3-PTZ housings.

Ethernet over Coax or UTP
The INT3-EoC extends Ethernet connectivity over Coax or UTP cables. The INT3-EoC5 and EoC10 models are constructed with specialized EX d conduit and conduit glands. Each INT3-EoC unit includes a corresponding module that converts the Ethernet signal back to RJ45. Additionally, a power supply is provided with the unit. The INT3-EoC is only available for ATEX environments.

INMETRO
For installations certified by INMETRO, it is essential to use cable tails equipped with INMETRO-certified cable glands. Please append -IN to the name of the required cable.

(c) 20250530
