TKH Security

PD5004

4MP IP Pendant PTZ camera with 40x motor zoom, IR, 1/1.8'' CMOS

Product Sheet

PD5004

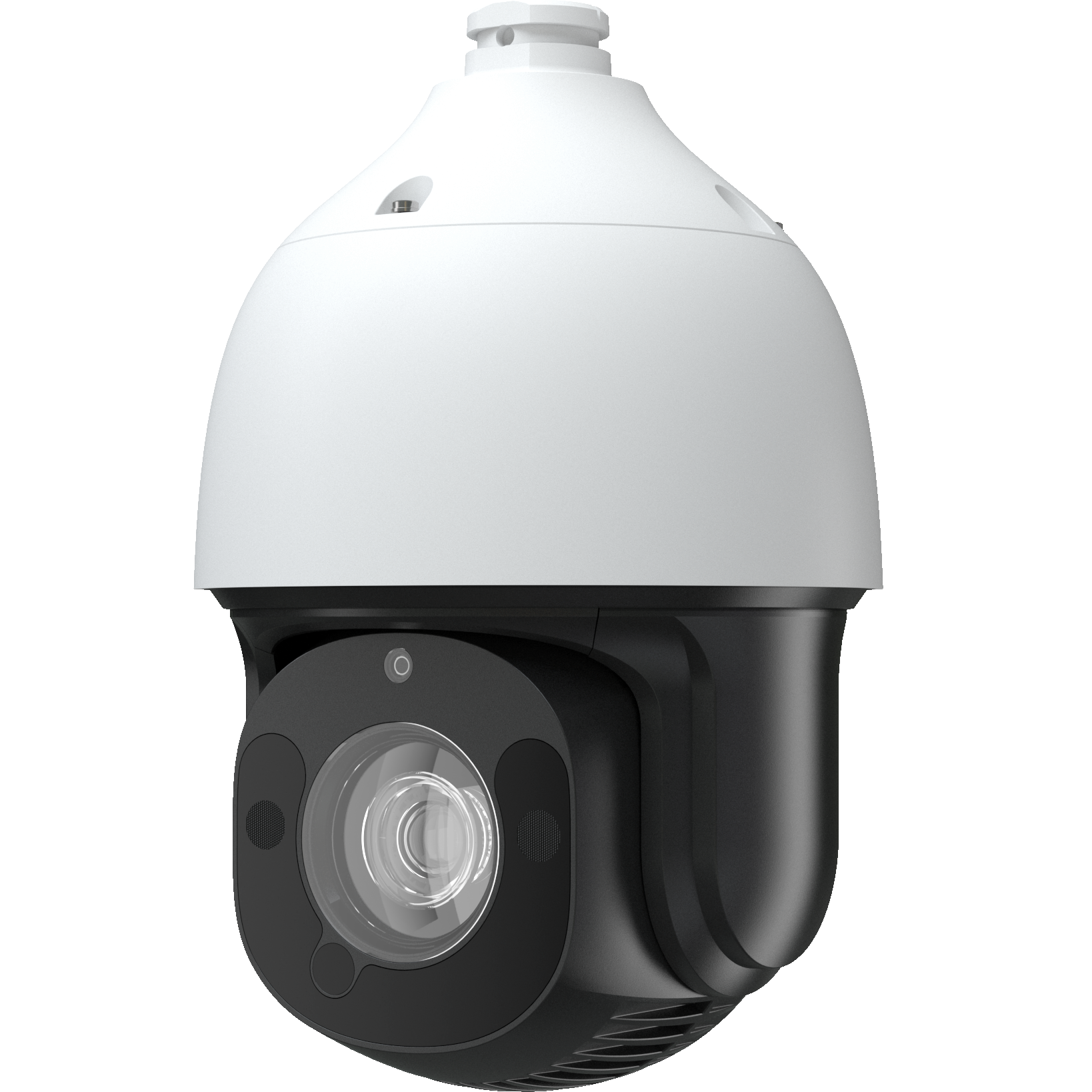

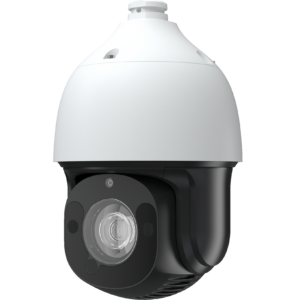

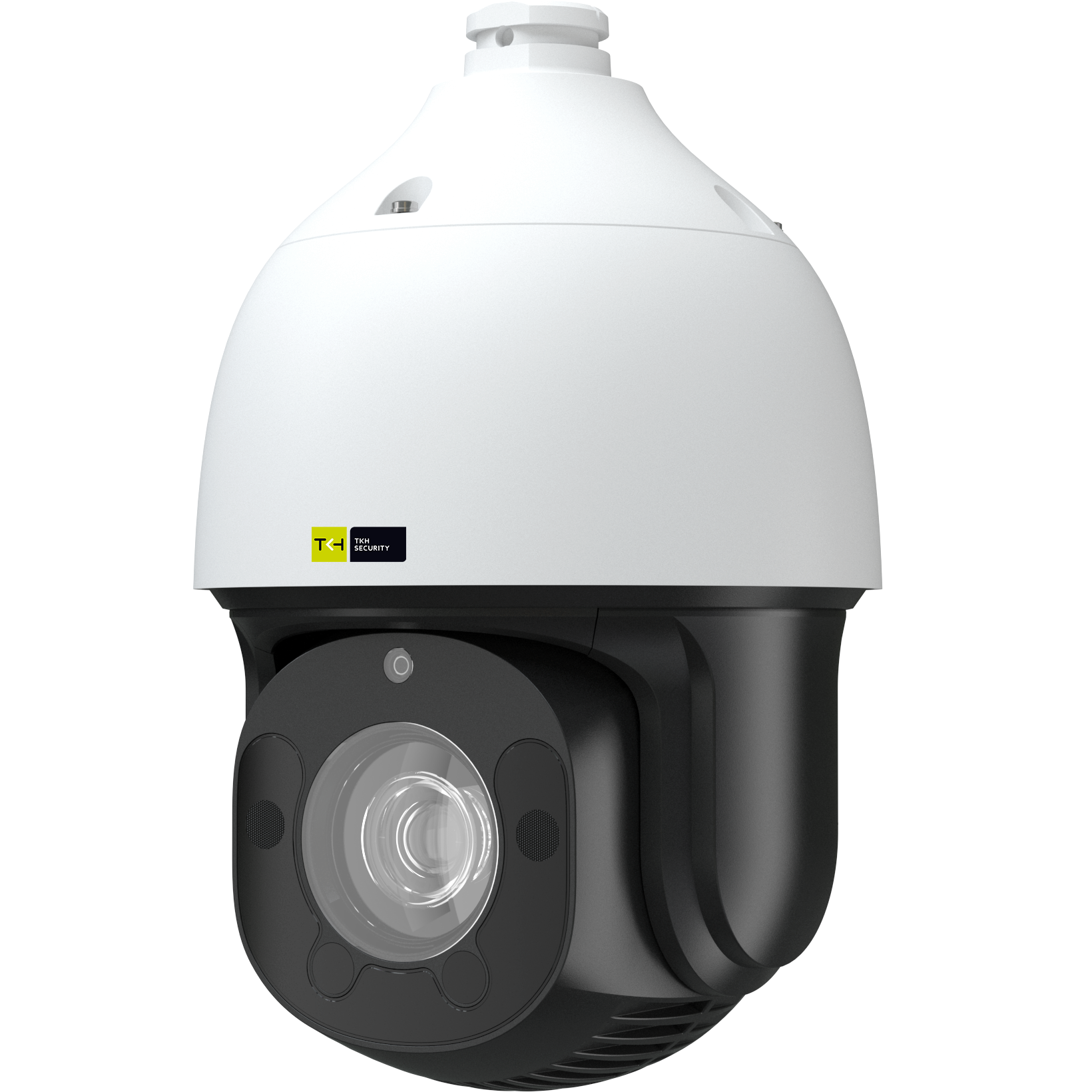

The PD5004 is a 4 megapixel HD IP outdoor PTZ camera. A powerful high-grade 40x optical zoom lens ensures sharp and clear images over a wide range. Built-in IR for zero lux operation. The high-speed pan, tilt, and zoom mechanism and auto-focus give instantaneous and stable focused images.
Note that the WMPD50 already comes standard in the PD5004x cameras box; this WMPD50 can also be bought separately as a spare or replacement.

Features

  • 1/1.8 inch Progressive scan CMOS imager
  • 40x optical zoom, 16x digital zoom
  • Max. 2688x1520 (4MP) resolution
  • Triple stream H.264, H.264+, H.265, H.265+, and MJPEG
  • Max. 60fps
  • 5° tilt above horizon without optical distortion
  • Secured Streaming, IEEE 802.1x authentication
  • 120 dB WDR (HDR)
  • AI enforced embedded video analytics
  • ONVIF Profile S, G, T, M
  • NDAA Compliant

Description

Multi-stream multi-codec
The camera has triple stream capability for simultaneous streaming of H.264, H.264+, H.265, H.265+, and MJPEG. Multiple combinations of resolution, frame rate, and encoding can be configured to fit all possible live viewing and recording scenarios. The highest 4 MP resolution is available at full frame rate, while double 50/60 fps is available for full HD resolution.

Dual conversion gain HDR
Dual conversion gain HDR is a high dynamic range imaging technology that uses two different conversion gains (High Conversion Gain and Low Conversion Gain) on the image sensor. This technology allows the sensor to simultaneously capture both high and low brightness details in the same scene, thereby extending the dynamic range of the sensor. The advantage of DCG HDR technology is that it can provide better signal-to-noise ratio and dynamic range while reducing motion artefacts.

Open standards
Multiple options are available to easily integrate the PD5004 to a video management system. The TKH Security signature SPI protocol is included as the easiest way to drive the camera in customized environments. In support of open standards, the camera is ONVIF conformant. Any VMS today supports this camera via its ONVIF driver.

Image enhancement
The PD5004 utilizes advanced image processing technology. Crisp and detailed 4MP images with an extremely high dynamic range in real time due to multiple exposure HDR within one frame. Back-light and High-light compensation enhances image-visibility in difficult lighting situations. In addition the camera provides for 3D motion compensated noise reduction for the best images.
Truly remarkable about the camera is its AI enforced low-light sensitivity. Using this next-gen technology, the disadvantageous effects of low light environments such are noise and motion blur are effectively reduced by this camera, without the help of supplemental lighting.

Power source choices
The PD5004 can be powered by 24 VAC or 36 VDC, or over the network with PoE++ (IEEE 802.3bt).
