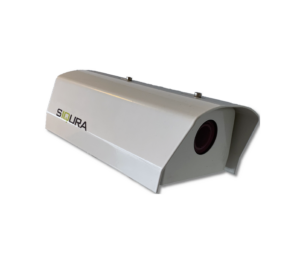

XCU Compact 316L rugged 2MP HD camera motorized zoom
Rugged stainless-steel camera for demanding environments. The XCU Compact is available with a 4x or 10x motorized lens and autofocus for rapid deployment and remote installation. The XCU and its accessories are double protected against corrosion; they are entirely made of powder-coated stainless-steel (316L). The housing is hermetically sealed against water and dust, which makes it ideal for harsh environments like traffic, tunnels, marine, offshore, heavy industry, waste management, etc. The direct-to-fiber connection makes it suitable to cover long distances and less susceptible for interference
The XCU Compact Camera is designed to operate under the tough environmental conditions in traffic (tunnels) and marine (offshore) applications. The housing and brackets are made from high grade 316L stainless steel, powder-coated (RAL9016) for the best protection against corrosive substances and environments.
Plug & Play
Installing and commissioning IP cameras is made easy with the XCU Compact. It slides into place on the XCU's versatile mounting accessories and is operational by connecting powered Ethernet . No need to open the unit; all connections can be prepared in advance.
Integrated 4x or 10x zoom Full-HD lens
The XCU Compact is available with different motorized zoom lenses. The short range 2.8 mm to 12 mm (4x) or mid-range 5 mm to 50 mm (10x) optical zoom offers an ideal coverage of the scene for almost any camera position. Remote zoom and focus allows you to define and configure the field-of-view afterwards, without opening the camera. The ultra-low light performance makes this a versatile camera for a wide range of applications.
Out of the box, the XCU Compact integrates with the common VMS systems. Being ONVIF Profile S compliant, the camera is supported by most video management systems. When needed, the camera can be controlled through a comprehensive HTTP API (Siqura Programming Interface). This specifically enables deployment in projects with custom requirements.
Multi-streaming and multicasting
The XCU Compact has multi-streaming capabilities for simultaneous transmission of one or more H.264 streams combined with MJPEG. This guarantees interoperability with existing VMS systems. Multiple combinations of resolution and frame rate can be configured to satisfy different live-viewing and recording scenarios. In addition, multicasting is supported for complex, multi-user video networks.
The XCU Compact has a full set of image enhancement tools on-board to improve the image for the actual application. The adjustable white balance and hue can compensate for varying lighting conditions. Back-light compensation and wide dynamic range functions enhance image quality in difficult lighting situations, ensuring quality pictures even in case of challenging scenes.
Direct to fiber connection
The XCU Compact 2SM is fitted with an Ethernet over fiber connection. With it it can span distances up to 30 km over duplex single mode fiber (OS1) without the problems of radio interference or power surges. On top of that fiber connections are hard to hack and therefor much more secure that CAT5 or CAT6 connections.
