Siqura

XCU3 Compact Thermal

XCU3 Compact 316L intelligent thermal camera

Product Sheet

XCU3 Compact Thermal

Rugged thermal imaging camera for demanding environments. Thermal cameras can be used 24/7 for al sorts of monitoring or detection purposes. The XCU3 Compact Thermal is fitted with a radiometric thermal module and video analytics to actively help with perimeter surveillance, fire detection, and hotspot detection. The XCU and its accessories are double protected against corrosion; they are entirely made of powder-coated 316L stainless-steel. The housing is hermetically sealed against water and dust, which makes it ideal for harsh environments like traffic, tunnels, marine, offshore, heavy industry, waste management, etc. Thermal products with framerates above 9 fps are bound. The XCU3 may be subject to EU export control under EU 2021/821

Features

  • Uncooled radiometric thermal imager
  • Compact, robust, and corrosion free
  • powder-coated 316L stainless steel housing
  • Choice of lenses
  • Plug & Play
  • Built-in analytics
  • Water and dust tight: IP66 & IP67
  • ONVIF Profile S and T ready

Description

The XCU3 Thermal is designed to operate in harsh and aggressive environments. Typical applications are found in the heavy industry, traffic, tunnels, waterways, waste treatment and even in marine environments. The XCU3 Compact Thermal is fitted with an uncooled thermal imager with a choice of lenses.

Plug & Play

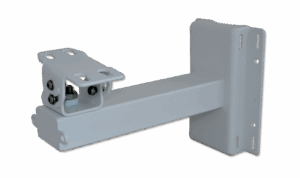

Installing and commissioning IP cameras has become easy. The XCU3 Compact slides into place with its versatile mounting accessories and is operational by plugging in the external connector. No need to open the unit; all connections can be prepared in advance.

Night Vision and Hot spot detection
The XCU3 Compact Thermal is fitted with a highly sensitive uncooled microbolometer for thermal imaging. It detects temperature differences as small as 35 mK and can spot heat sources invisible to the naked eye. When the darkness obscures the vision of an ultra-low light CCTV camera, the thermal camera gives a clear overview of what is going on.

Multi-streaming and multicasting
The XCU3 Compact Thermal has multi-streaming capabilities for simultaneous transmission of one or more H.265 or H.264 streams. This guarantees interoperability with existing VMS systems. Multiple combinations of resolution and frame rate can be configured to satisfy different live-viewing and recording scenarios. In addition, multicasting is supported for complex, multi-user video networks.

Open standards
Out of the box, the XCU3 integrates with the common VMS systems. Supporting ONVIF Profile S the camera is supported by most video management systems. When needed, the camera can be controlled through a comprehensive HTTP API (Siqura Programming Interface). This specifically enables deployment in projects with custom requirements.

Built-in video analysis
The XCU3 Compact Thermal is fitted with on-board analytics for intrusion detection, flare monitoring, and hotspot detection.

(c) 20240926
