TKH Security

FE5012

12MP IP Fixed dome camera, IR, 1/1.7'' CMOS

Product Sheet

FE5012

*** Planned release October 1, 2025 ***

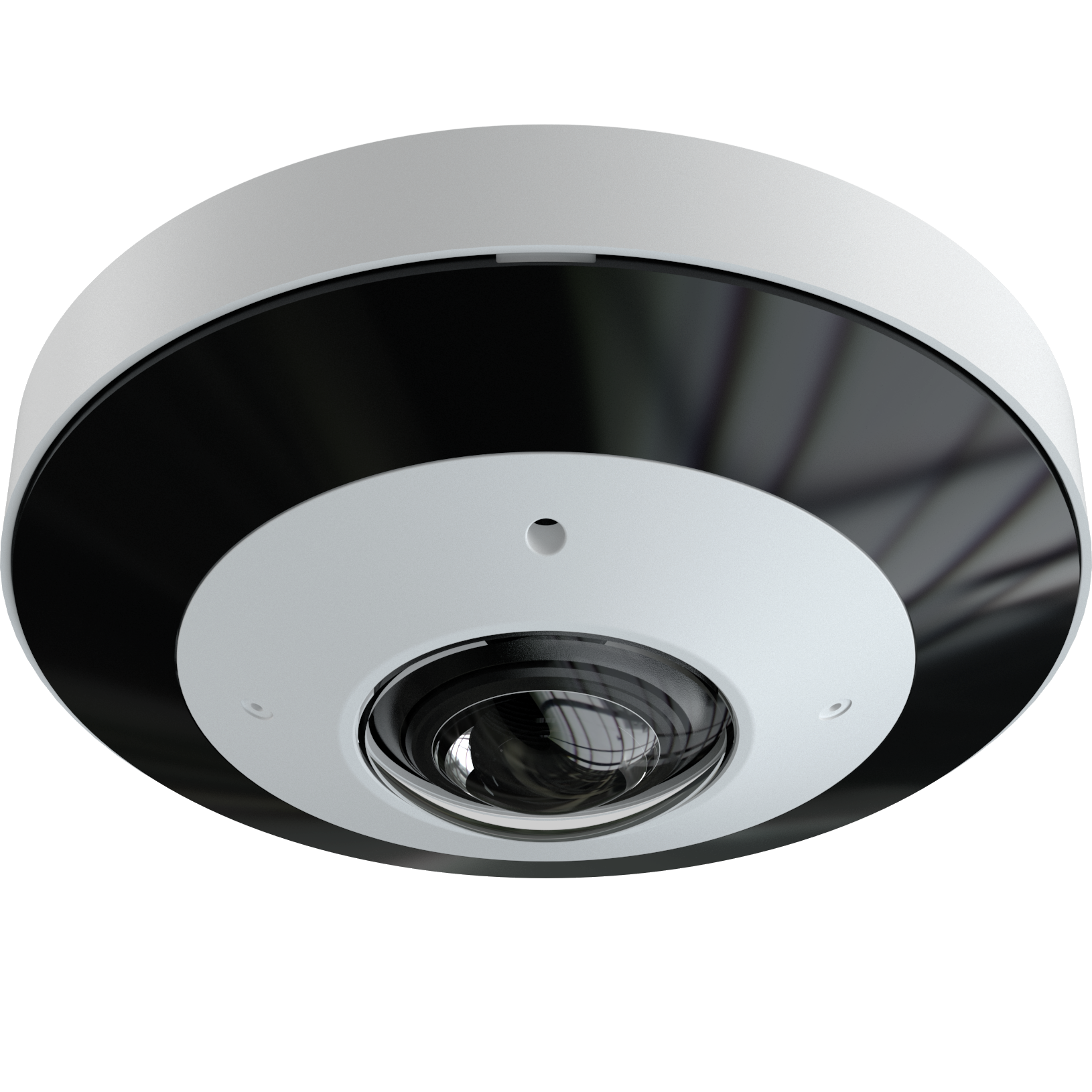

The FE5012 12 megapixel IP fisheye camera with built-in IR illumination providing clear images under any lighting condition. The camera has multi-stream capabilities for simultaneously streaming of H.264/H.264+/H.265/H.265+/MJPEG. Multiple combinations of resolution and frame rate can be configured. Front-end dewarping mode is equipped and a variety of resolutions and image modes like the full 360° view, dewarped panoramic view (2x 180°), or dewarped single viewview can be selected. With its IP66 construction, IK10 vandal-resistant housing, and fixed lens, installation is fast and easy.

Features

  • 1/1.7'' progressive scan CMOS sensor
  • 4000x3000 (12MP) sensor resolution
  • Triple stream H.264, H.264+, H.265, H.265+, and MJPEG
  • On-board dewarping for easy installation
  • Dewarped ePTZ via camera web page
  • Various Dewarp mode Quad View, Double Panoramic View etc.
  • Built-in IR illuminator
  • AI enforced embedded video analytics
  • ONVIF Profile S, T, G, M
  • IP66, IK10 vandal proof

Description

Multi-stream multi-codec
The camera has triple stream capability for simultaneous streaming of H.264, H.264+, H.205, H.265+, and MJPEG. Multiple combinations of resolution, frame rate, and encoding can be configured to fit all possible live viewing and recording scenarios. The 6 megapixel resolution is available at 25/30 fps still offering multiple exposure WDR (or HDR, in short) with the possibility to add a second stream.

Dewarping Mode
The FE5012 is equipped with on-board dewarping. With this function, the camera dewarps the original 360 view to various image modes and streams dewarped image independently across the network. The dewarped view can be moved by the ePTZ function in the webpage to the desired angle without a blind spot. Next to on-board dewarping, the fish eye camera can also show the original 360 degree circular picture, so that the video management software can take care of de-warping on the server or client workstation.

Open standards
Multiple options are available to easily integrate the FE5012 to a video management system. The TKH Security signature SPI protocol is included as the easiest way to drive the camera in customized environments. In support of open standards, the camera is compliant with the ONVIF Profile S, T, G, and M. Any VMS today supports this camera via the ONVIF driver.

Power source choices
The FD5006M can be powered by 12 Vdc, or over the network with PoE.

(c) 20250821
