» WM50

The WM50 is the corner mount, for the FD50xxM fixed dome cameras and the FE5012 fisheye camera from the 5000-series cameras.

Material

SPCC

Color

RAL 9003 (signal white)

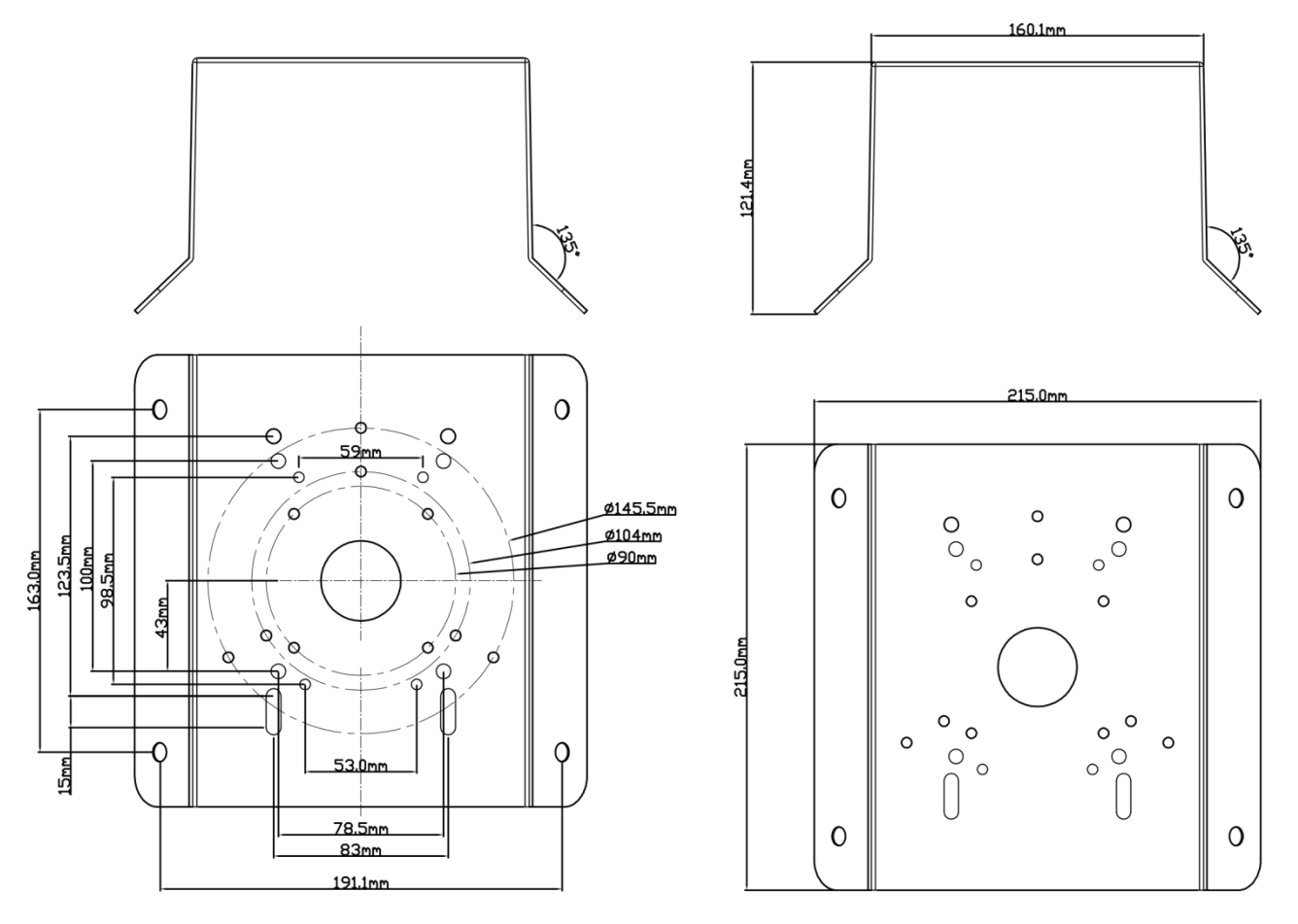

Dimensions (H x W x D)

215 x 121.4 x 215 mm

Weight

2.050 kg

Load Bearing

The wall must be strong enough to withstand at least 3 times the weight

of the complete camera assembly

Working Temperature

-40 .. +60 °C (-40 .. +140 °F)

Working Humidity

10 .. 90 % RH

WM50

Ceiling mount, for FD50xxM
