» JBBL50

The JBBL50 is the junction box for the BL500xM bullet cameras from the 5000-series cameras.

Material

Aluminium alloy

Color

RAL 9003 (signal white)

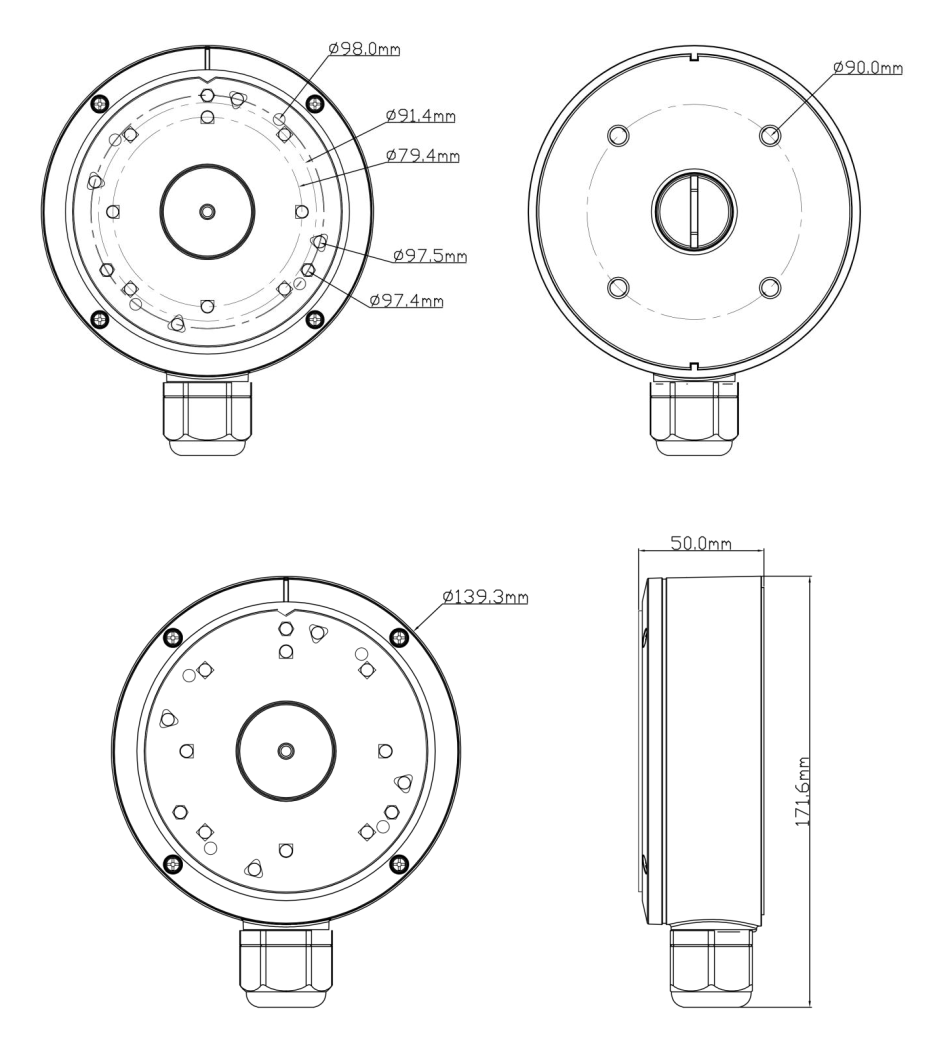

Dimensions (H x W x D)

50 x 139 x 139 mm

Weight

0.512 kg

Load Bearing

The wall must be strong enough to withstand at least 3 times the weight

of the camera and the junction box

Working Temperature

-40 .. +60 °C (-40 .. +140 °F)

Working Humidity

10 .. 90 % RH

JBBL50

Junction box, for BL50xxM
