» JBFD50

*** Planned release October 1, 2025 ***
The JBFD50 is the junction box for the FD50xxM fixed dome cameras from the 5000-series cameras.

Material

Aluminum alloy

Color

RAL 9003 (signal white)

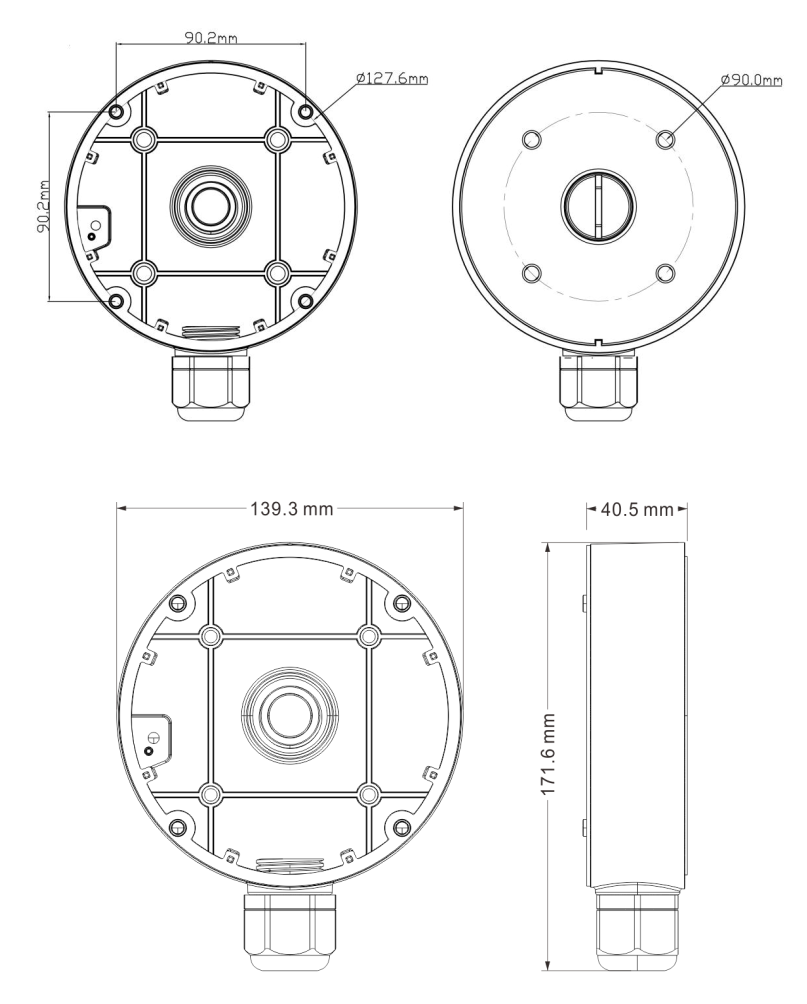

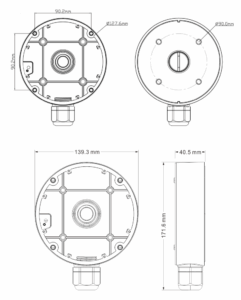

Dimensions (H x W x D)

41 x 139.3 x 139.3 mm

Weight

0.360 kg

Load Bearing

The wall must be strong enough to withstand at least 3 times the weight

of the complete camera assembly

Working Temperature

-40 .. +60 °C (-40 .. +140 °F)

Working Humidity

10 .. 90 % RH

JBFD50

Junction box, for FD50xxM
