» JBFE50

*** Planned release October 1, 2025 ***
The JBFE50 is the junction box for the FE5012 fisheye camera from the 5000-series cameras.

Material

Aluminum alloy

Color

RAL 9003 (signal white)

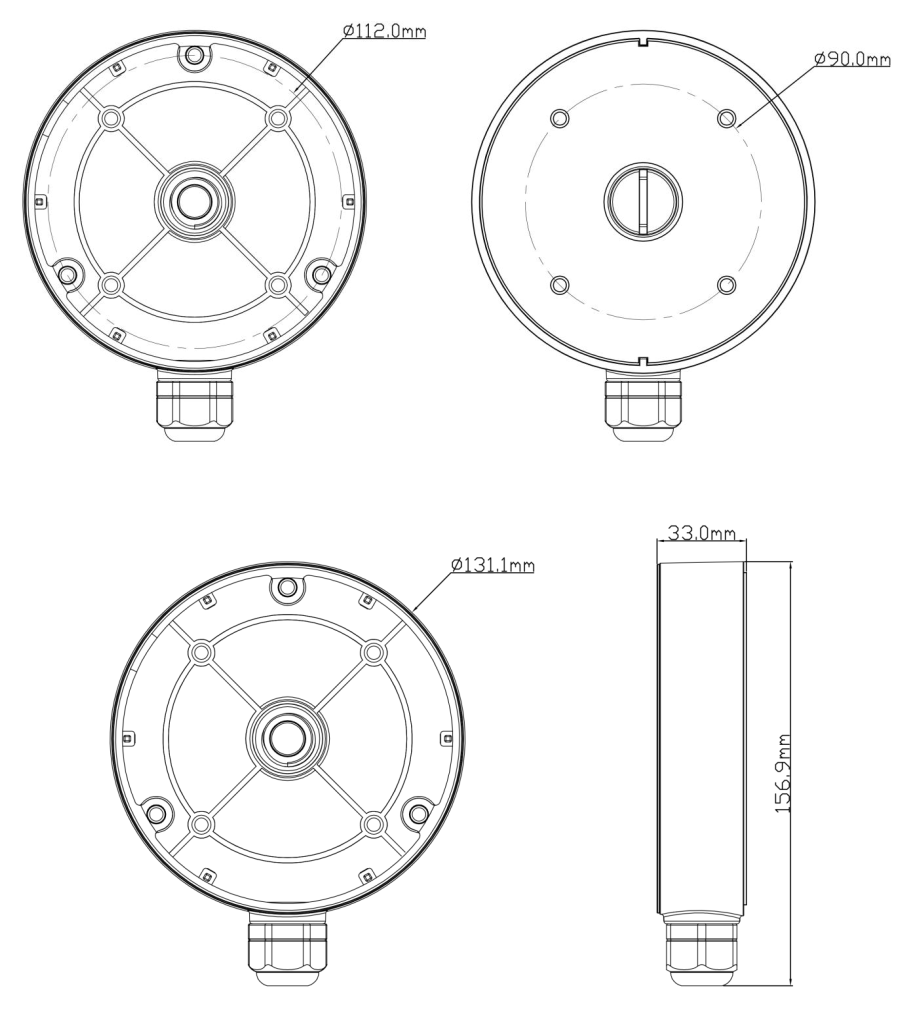

Dimensions (H x W x D)

33 x 131 x 131 mm

Weight

0.236 kg

Load Bearing

The wall must be strong enough to withstand at least 3 times the weight

of the complete camera assembly

Working Temperature

-40 .. +60 °C (-40 .. +140 °F)

Working Humidity

10 .. 90 % RH

JBFE50

Junction box, for FE5012
